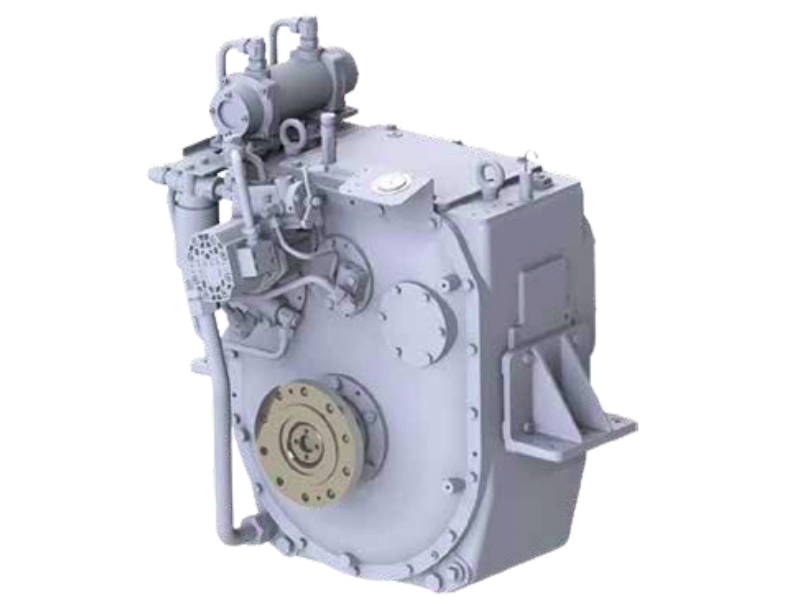

MM W1950 NR
MM W1950 NR
| Model | MM W1950 NR | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| MM W1950 NR |
Power/RPM kW/RPM - (hp/RPM) |
Maximum rated input kW (hp) |
Ratio | Maximum input RPM | ||||||
| 0,210 (0,282) | 588 (789) | 4,103 | 2800 | |||||||
| 4,481 | ||||||||||
| 4,920 | ||||||||||
| 5,727 | ||||||||||
| 0,193 (0,259) | 540 (725) | 6,400 | ||||||||
| 0,172 (0,231) | 482 (646) | 7,222 | ||||||||
| 0,157 (0,211) | 440 (590) | 7,706 | ||||||||
| Dry weight kg(lb) | 720 (1593) | |||||||||
| SAE bell | #0, #1 | |||||||||
| Type | Vertical offset | |||||||||
| Kinematics | Non Reversible, Engine Wise and Counter Engine Wise | |||||||||
Description
- Robust design and easy onboard maintenance.
- Robust design also withstands continuous duty in workboat,dredger applications.
- Fully works tested, reliable and simple to install.
- Reverse reduction marine transmission with hydraulically actuated multi-disc clutches.
- Case hardened and precisely ground gear teeth for long life and smooth running.
- Robust cast iron casing for direct or remote mounting.
- Emergency “get home” capability.
- Design, manufacture and quality control standards comply with ISO.
- Suitable for twin installation with 100% rated power in ahead and astern condition.
