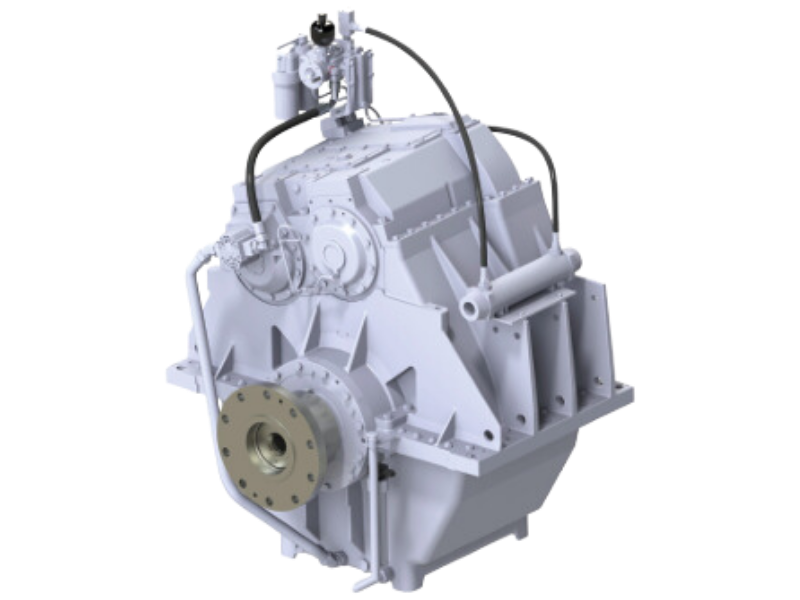

MM W20000 NR
MM W20000 NR
| Model | MM W20000 NR | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| MM W20000 NR |
Power/RPM kW/RPM (hp/RPM) |
Maximum rated input kW (hp) |
Ratio | Maximum input RPM | ||||||
| 2,344 (3,143) | 4219 (5658) | 3,214 | 1800 | |||||||
| 3,317 | ||||||||||
| 3,658 | ||||||||||
| 4,364 | ||||||||||
| 4,933 | ||||||||||
| 5,593 | ||||||||||
| 2,000 (2,682) | 3600 (4828) | 6,179 | ||||||||
| Dry weight kg(lb) | 5700 (12570) | |||||||||
| SAE bell | Free standing | |||||||||
| Type | Vertical offset | |||||||||
| Kinematics | Non Reversible, Engine Wise and Counter Engine Wise | |||||||||
Description
- Robust design and easy onboard maintenance.
- Robust design also withstands continuous duty in workboat,dredger applications.
- Fully works tested, reliable and simple to install.
- Reverse reduction marine transmission with hydraulically actuated multi-disc clutches.
- Case hardened and precisely ground gear teeth for long life and smooth running.
- Robust cast iron casing for direct or remote mounting.
- Emergency “get home” capability.
- Design, manufacture and quality control standards comply with ISO.
- Suitable for twin installation with 100% rated power in ahead and astern condition.
