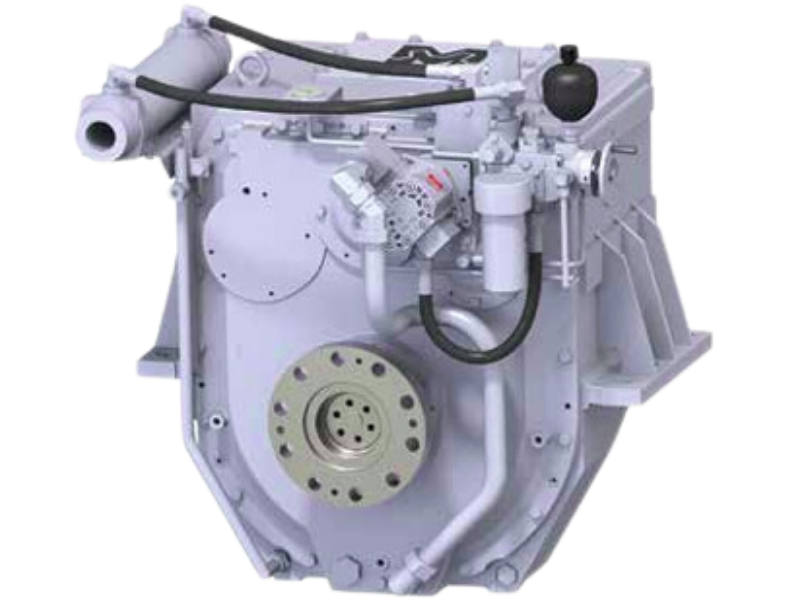

MM W3700 NR
MM W3700 NR
| Model | MM W3700 NR | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| MM W3700 NR |
Power/RPM kW/RPM - (hp/RPM) |
Maximum rated input kW (hp) |
Ratio | Maximum input RPM | ||||||
| 0,388 (0,520) | 854 (1145) | 4,077 | 2200 | |||||||
| 4,583 | ||||||||||
| 4,913 | ||||||||||
| 5,476 | ||||||||||
| 5,850 | ||||||||||
| Dry weight kg(lb) | 1260 (2780) | |||||||||
| SAE bell | #0, #1 | |||||||||
| Type | Vertical offset | |||||||||
| Kinematics | Non Reversible | |||||||||
Description
- Robust design and easy onboard maintenance.
- Robust design also withstands continuous duty in workboat,dredger applications.
- Fully works tested, reliable and simple to install.
- Non-reversing reduction marine transmission with hydraulically actuated multi-disc clutches.
- Case hardened and precisely ground gear teeth for long life and smooth running.
- Robust cast iron casing for direct or remote mounting.
- Emergency “get home” capability.
- Design, manufacture and quality control standards comply with ISO.
- Suitable for twin installation with 100% rated power in ahead and astern condition.
