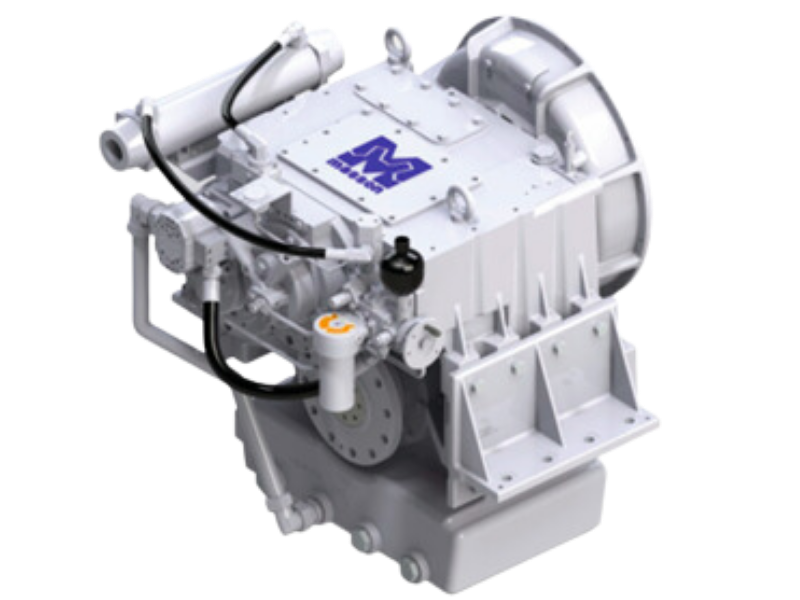

MM W3900 NR
MM W3900 NR
| Model | MM W3900 NR | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| MM W3900 NR |
Power/RPM kW/RPM - (hp/RPM) |
Maximum rated input kW (hp) |
Ratio | Maximum input RPM | ||||||
| 0,408 (0,547) | 857 (1149) | 6,091 | 2100 | |||||||
| 6,435 | ||||||||||
| 0,388 (0,520) | 815 (1093) | 6,818 | ||||||||
| 0,348 (0,467) | 731 (980) | 6,955 | ||||||||
| Dry weight kg(lb) | 1270 (2800) | |||||||||
| SAE bell | #0, #1 | |||||||||
| Type | Vertical offset | |||||||||
| Kinematics | Non Reversible, Engine Wise and Counter Engine Wise | |||||||||
Description
- Robust design and easy onboard maintenance.
- Robust design also withstands continuous duty in workboat,dredger applications.
- Fully works tested, reliable and simple to install.
- Reverse reduction marine transmission with hydraulically actuated multi-disc clutches.
- Case hardened and precisely ground gear teeth for long life and smooth running.
- Robust cast iron casing for direct or remote mounting.
- Emergency “get home” capability.
- Design, manufacture and quality control standards comply with ISO.
- Suitable for twin installation with 100% rated power in ahead and astern condition.
