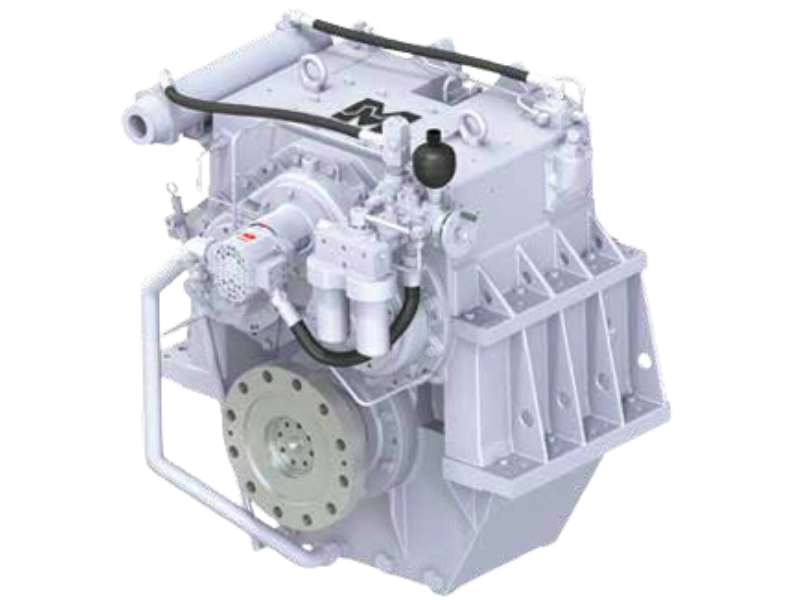

MM W7400 NR
MM W7400 NR
| Model | MM W7400 NR | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| MM W7400 NR |
Power/RPM kW/RPM (hp/RPM) |
Up to 0,869 (1,165) | ||||||||
| Maximum rated input - kW (hp) | Up to 1607 (2155) | |||||||||
| Ratio | From 4,608 to 9,078 refer to the table sheet 2/2 | |||||||||
| Maximum input RPM | 2100 | |||||||||
| Dry weight kg(lb) | 2450 (5400) | |||||||||
| SAE bell | #0,#00 | |||||||||
| Offset type | Vertical offset | |||||||||
| Kinematic | Non Reversible, Engine Wise, Counter Engine Wise | |||||||||
Description
- Robust design and easy onboard maintenance.
- Robust design also withstands continuous duty in workboat,dredger applications.
- Fully works tested, reliable and simple to install.
- Reverse reduction marine transmission with hydraulically actuated multi-disc clutches.
- Case hardened and precisely ground gear teeth for long life and smooth running.
- Robust cast iron casing for direct or remote mounting.
- Emergency “get home” capability.
- Design, manufacture and quality control standards comply with ISO.
- Suitable for twin installation with 100% rated power in ahead and astern condition.
