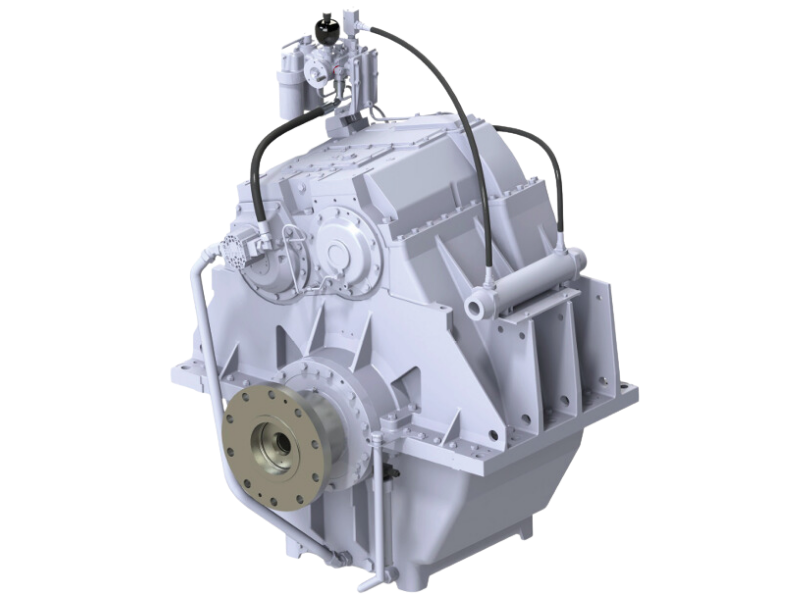

MM W20500
MM W20500
| Model | MM W20500 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| MM W20500 |
Power/RPM kW/RPM (hp/RPM) |
Maximum rated input (kW) hp |
Ratio | Maximum input RPM | ||||||
| 2,527 (3,389) | 3766 (5051) | 2,661 | 1490 | |||||||
| 3,029 | ||||||||||
| 3,613 | ||||||||||
| 4,085 | ||||||||||
| 2,127 (2,852) | 3510 (4706) | 4,849 | 1650 | |||||||
| 1,790 (2,400) | 2954 (3961) | 5,757 | ||||||||
| 1,729 (2,319) | 2853 (3826) | 5,959 | ||||||||
| 1,560 (2,092) | 2574 (3452) | 6,610 | ||||||||
| 1,404 (1,883) | 2317 (3107) | 7,345 | ||||||||
| 1,260 (1,690) | 2079 (2788) | 8,184 | ||||||||
| 1,170 (1,569) | 1931 (2589) | 8,810 | ||||||||
| 1,086 (1,456) | 1792 (2403) | 9,496 | ||||||||
| 1,170 (1,569) | 1931 (2589) | 9,989 | ||||||||
| 1,206 (1,617) | 1990 (2668) | 10,251 | ||||||||
| 1,086 (1,456) | 1792 (2403) | 10,767 | ||||||||
| 1,120 (1,520) | 1848 (2478) | 11,036 | ||||||||
| 1,039 (1,393) | 1714 (2299) | 11,895 | ||||||||
| Dry weight kg(lb) | 5800 (12790) | |||||||||
| SAE bell | Free standing | |||||||||
| Type | Vertical offset | |||||||||
| Kinematics | Non Reversible, Engine Wise and Counter Engine Wise | |||||||||
Description
- Robust design and easy onboard maintenance.
- Robust design also withstands continuous duty in workboat,dredger applications.
- Fully works tested, reliable and simple to install.
- Reversing reduction marine transmission with hydraulically actuated multi-disc clutches.
- Case hardened and precisely ground gear teeth for long life and smooth running.
- Robust cast iron casing for direct or remote mounting.
- Emergency “get home” capability.
- Design, manufacture and quality control standards comply with ISO.
- Suitable for twin installation with 100% rated power in ahead and astern condition.
