TK190
TK190
| Model | Gear Ratio | Flywheel Housing | Flywheel | Input Rating | MAX. Input Speed (rpm) | Input Torque (kg-m) | Oil Capacity (ℓ) | Dry Weight (kg) | Cooling Water Capacity (l/min) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1800rpm | 2100rpm | 2400rpm | |||||||||||||||
| KW | HP | PS | KW | HP | PS | KW | HP | PS | |||||||||
| TK190 | 1.62, 2.03, 2.5, 2.79, 3.15 | 3, 4, 5 | 11.5, 10, 7.5 | 54 | 73 | 74 | 63 | 85 | 86 | 72 | 97 | 98 | 3500 | 29.3 | 3 | 97 | 20~60 |
Product Features
- Greater durability through change of the rubber block made of special material.
- Hydraulic clutch can be easily handled outside.
- Control system fitted for a small-size ship and high speed, Guaranteed durability.
Precautions for Use
- Align the center of engine with marine gear (For greater effectiveness and longer life-span)
- Install the supporting bracket of marine gear.
- When assembling flange on output shaft of marine gear, be sure to align other flange accurately.
- Make sure to wash flywheel housing cover if dust should accumulate.
- When installing the cable and the remote control level, check to make sure the marine gear level is smooth.
- The oil with the viscosity equivalent to SAE#30 is recommended.
- Check the oil amount of oil before sailing.
- After 100 hours of operation check the oil, and then change every 1,000 hours.

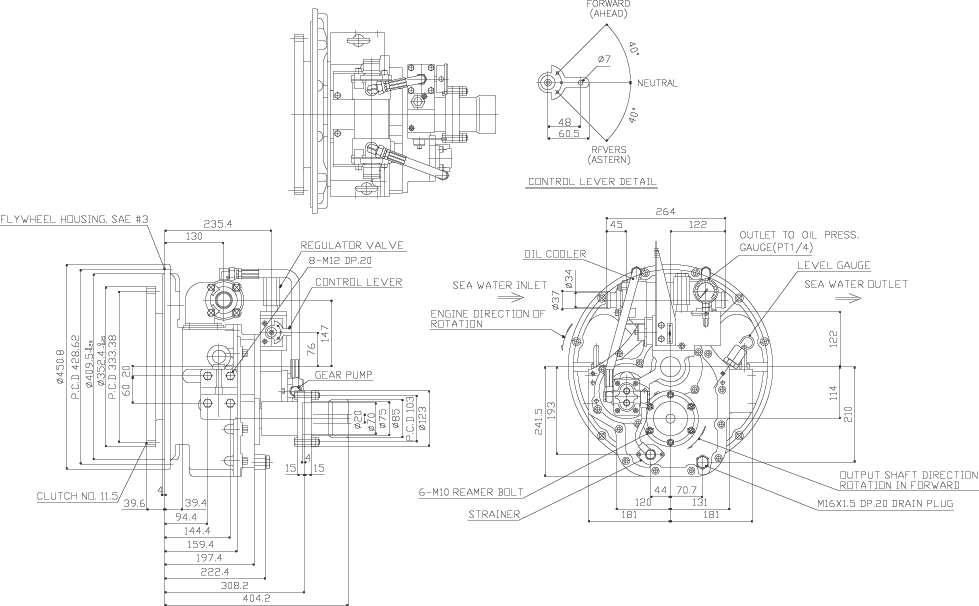

DIMENSIONS
