30HPEP kit Volvo
30HPEP kit Volvo
Product Detail

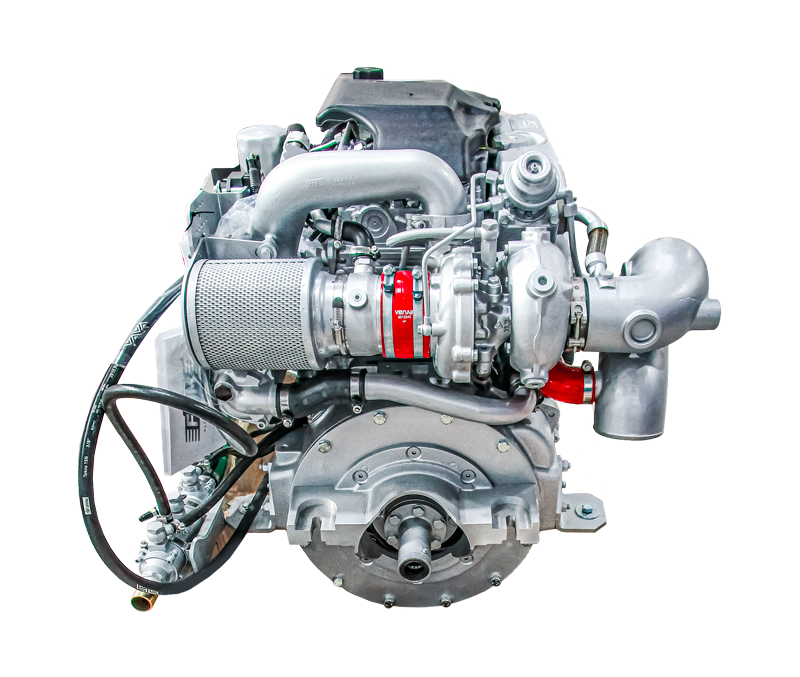

FNM® 30HPEP engine is based on the tested FPT 30 4-cylinder Common Rail engine.
This marine engine uses a common-rail fuel injection system controlled by an ECU specifically made for it. The result is a high power-to-displacement ratio unit.
| Item | 30 HPEP 270 | 30 HPEP 250 | 30 HPEP 225 | 30 HPEP 180 |
|---|---|---|---|---|
| Max power | 198.5 kW — 270 HP @ 4100 rpm | 184 kW — 250 HP @ 4100 rpm | 165 kW — 225 HP @ 4100 rpm | 132 kW — 180 HP @ 3800 rpm |
| Max torque | 530 Nm @ 2300 rpm | 553 Nm @ 2600 rpm | 520 Nm @ 2300 rpm | N.D. |
| Number of cylinders | 4 in line | |||
| Displacement | 3.0 L — 2,988 cc | |||
| Bore and stroke | 95.8 x 104 mm (3.77 x 4.09 in) | |||
| Dry weight | 330 kg | |||
| Cooling | Water | |||
| Combustion | Direct Injection — Common Rail | |||
| Induction | Turbocharged and intercooled | |||
| Emission compliance | Directive 2013/53/EU | |||
