30 GTA/GTAC
30 GTA/GTAC
Marine Generator

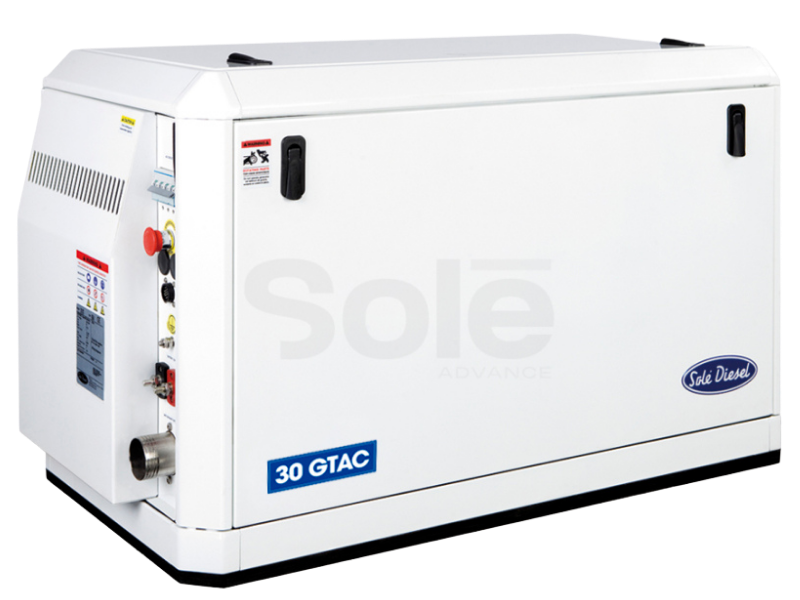

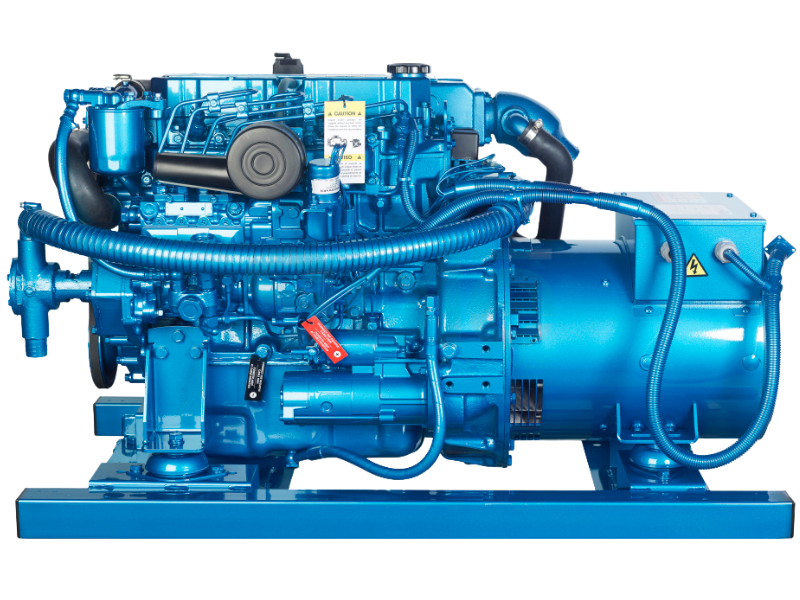

The 30 GTA/GTAC is a three phases marine generator set assembled on a 4 cylinder Mitsubishi engine block, which performs 24,0 kW – 30,0 kVA at 1800 rpm and 60 Hz. It is a very compact marine generator, suitable for those commercial boats with a high electrical demand, but restricted space in their engine rooms. With the same size as its predecessor, the 25 GTA/GTAC, the 30 GTA/GTAC performs 5,7 kVA – 4,5 kW more, thanks to its powerful engine block. The sound shield (canopy) version provides a quiet and noiseless navigation. There is a wide range of kits at disposal, for those boats which requires a demanding configuration, also synchronism for parallel operation, and DNV type approval from IACS, for those boats which demands the highest standards in terms of security.


| KVA | 30 KVA |
| Max RPM | 1800 RPM |
| Maximum active power | 24 KW |
| Frequency | 60 HZ |
| Phases | Three-Phase |
| Total length with canopy | 1310 MM |
| Total width with canopy | 610 MM |
| Total height with canopy | 698 MM |
| Total length without canopy | 1140 MM |
| Total width without canopy | 610 MM |
| Total height without canopy | 662 MM |
