14 GTA/GTAC

Marine Generator

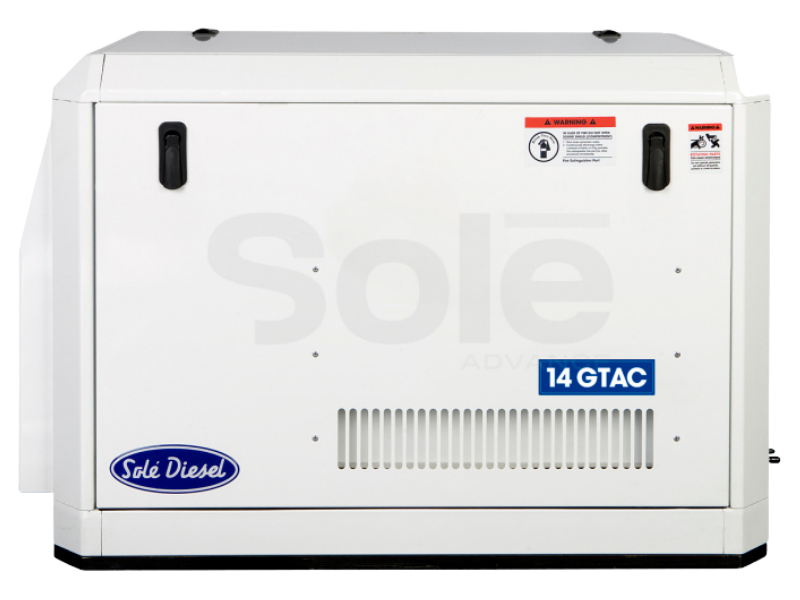

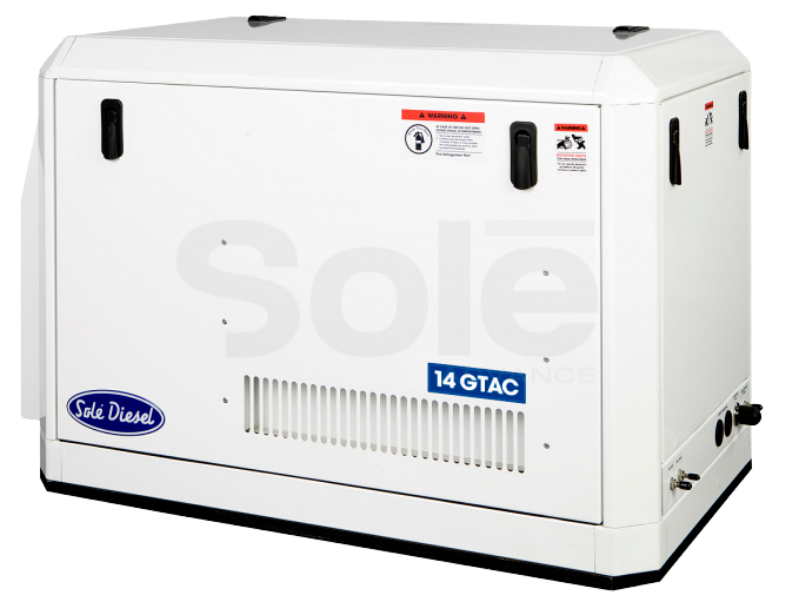

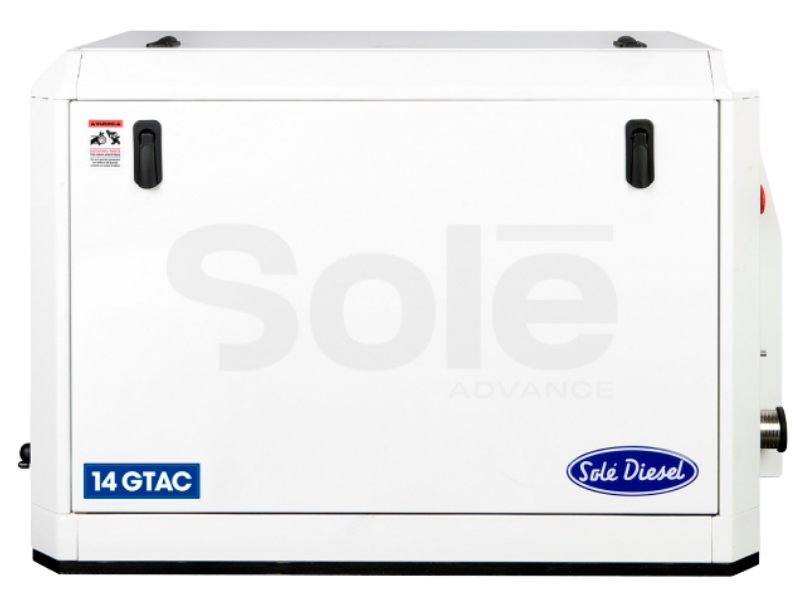

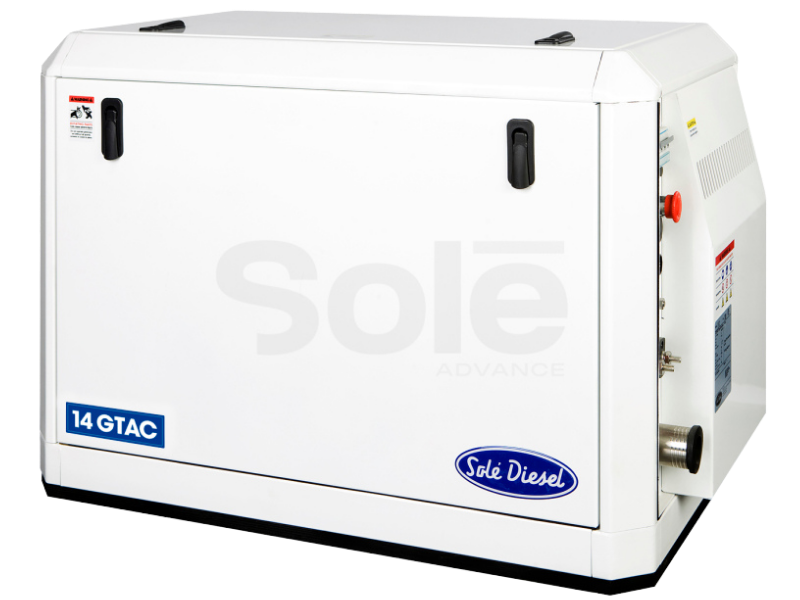

The 14 GTA/GTAC is a three-phase marine generator assembled on a 3-cylinder Mitsubishi engine block, delivering 10.9 kW – 13.6 kVA at 1800 rpm and 60 Hz. It is the perfect marine generator set for small commercial vessels with low electrical demand, such as fishing boats, passenger boats, and catamarans. Its sound shield (canopy version) ensures quiet and noiseless navigation, proving that working at sea doesn’t have to be uncomfortable.

Furthermore, a wide range of kits is available for highly specific needs, and the 11 GT/GTC model is also available with synchronism for parallel operation and DNV type approval from IACS.

Documentation

User Manual

CE Certificate

KVA 13,6 KVA
Max RPM 1800 RPM
Maximum active power 10,9 KW
Frequency 60 HZ
Phases Three-Phase
Total length with canopy 1032 MM
Total width with canopy 580 MM
Total height with canopy 668 MM
Total length without canopy 885 MM
Total width without canopy 580 MM
Total height without canopy 609 MM
